| 브랜드 이름: | KHJ |
| 모델 번호: | E2-IH823C |
Description

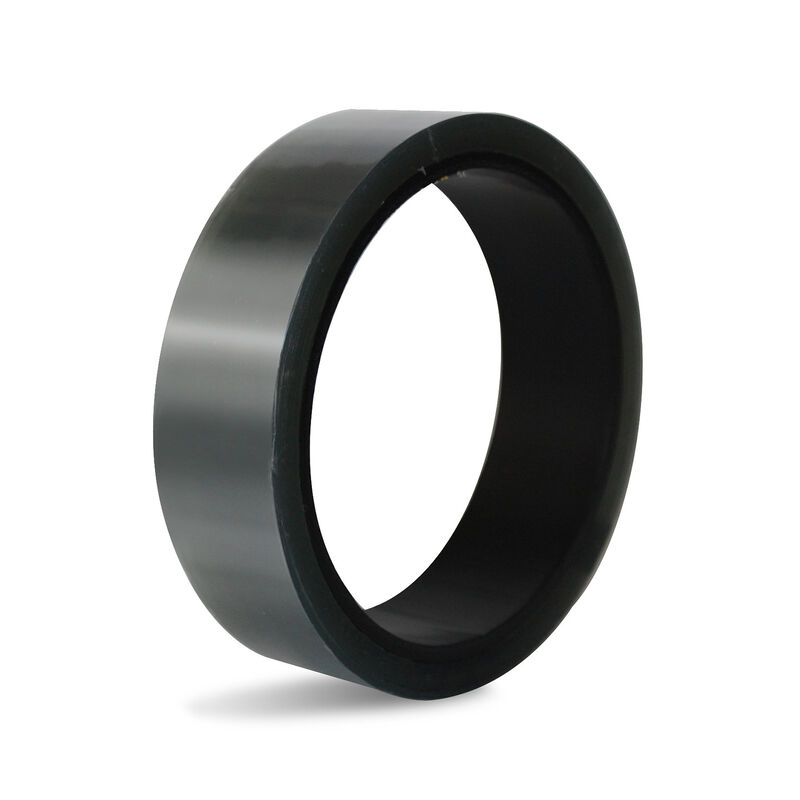

E2-IH823C is a polyimide film-backed silicone adhesive tape with super heat resistance and extremely low electrostatic discharge properties. And insulation resistance of adhesive side is measurable.
Construction
Features
Application
Masking for golden finger of Print circuit boards when wave soldering or reflow soldering process, surface protection under the high temperature without any residue.
Properties
| Item | Typical Value | Test Method |
| Backing | 0.025mm | / |
| Total Thickness | 0.055± 0.005mm | / |
| Adhesion to Steel | 4-6N/25mm | GBT 2792-2014 |
| Tensile Strength | ≥2(KN/M) | GBT 30776-2014 |
| Elongation | ≥10% | |
| Surface & Adhesive Resistanc | e 105-10ohms | / |
| Static Discharge | <100V | / |
| Operating Temperature | 280℃ | / |
Storage
Precaution Reminder
Notes
Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
